Insert Carbide IC-10-010-E

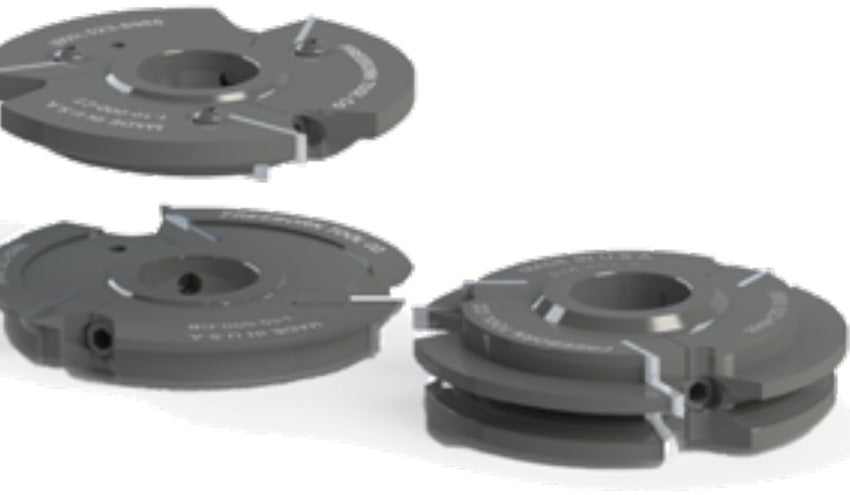

Insert carbide tooling from Freeborn: dedicated and multi-profile heads with replaceable tips. Carbide cuts well in natural wood and man-made materials. Insert cope and pattern sets with common minor diameters and vertical profile centering that eliminate the need to adjust spindle height or fence position when switching from cope to pattern. Heads accept both square and eased edges, for 3/4 in to 7/8 in material, 1/4 × 1/2 in tongue and groove standard. CCW rotation, material fed face down.

Materials

• Natural wood
• Particle board
• Plywood
• Fiberboard

Applications

• Cope and pattern
• Square and eased edges

Machine types

• Shapers

Specifications

• Diameter: 4-1/2 in
• Bore: 1-1/4 in
• Tip material: Carbide
• Series: Insert
• Wings: 3

Freeborn Tool Company — sold by Nordic Saw. Made in the USA.
