Conical Scoring 200mm 34T (CSA-200-034-020-044)

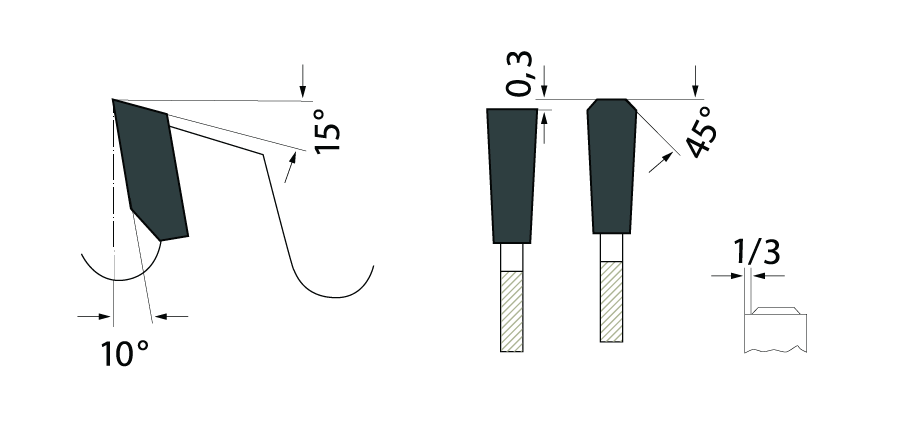

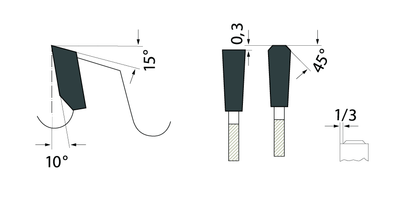

Engineered for precision in high-production environments, these panel saw blades are optimized for cutting laminated and composite materials, including particleboard, MDF, plywood, thermoplastics, and phenolics. Each main blade features a +10° hook angle with a triple chip grind , delivering superior edge retention and clean finishes in demanding applications.

Materials

• Laminated Panels
• MDF
• Plywood
• Thermoplastics
• Phenolics

Applications

• Precision panel cutting
• Production cabinetry and casework
• Laminated board sizing
• Brand

Machine types

• Horizontal Panel Saws
• Sliding Table Saws

Specifications

• Diameter: 200mm
• Teeth: 34T
• Bore: 20mm
• Kerf: 4.4-5.4mm
• Plate: 3.2mm
• Pinholes: 2/11/66 + 2/11/115
• Machine fit: SCHELLING

Viking Saw Blades — made for Nordic Saw by Saw Specialties.
