Panel Sizing 400mm 72T (HPS-400-072-080-044)

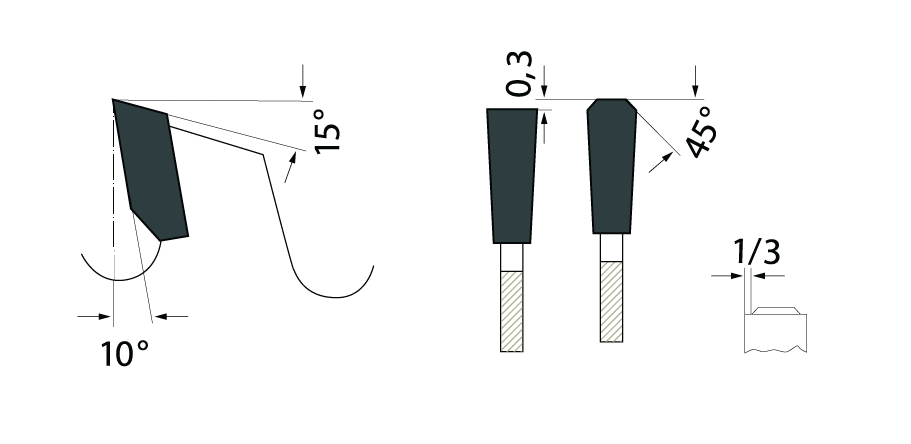

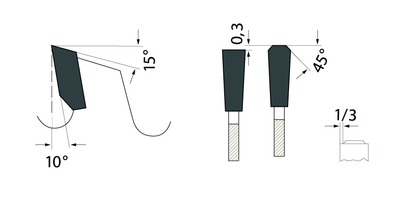

Engineered for precision in high-production environments, these panel saw blades are optimized for cutting laminated and composite materials, including particleboard, MDF, plywood, thermoplastics, and phenolics. Each main blade features a +10° hook angle with a triple chip grind , delivering superior edge retention and clean finishes in demanding applications.

Materials

• Laminated Panels
• MDF
• Plywood
• Thermoplastics
• Phenolics

Applications

• Precision panel cutting
• Production cabinetry and casework
• Laminated board sizing
• Brand

Machine types

• Horizontal Panel Saws
• Sliding Table Saws

Specifications

• Diameter: 400mm
• Teeth: 72T
• Bore: 80mm
• Kerf: 4.4mm
• Plate: 3.2mm
• Pinholes: 4/9/100 + 2/14/110 + 2/7/110
• Machine fit: GABBIANI

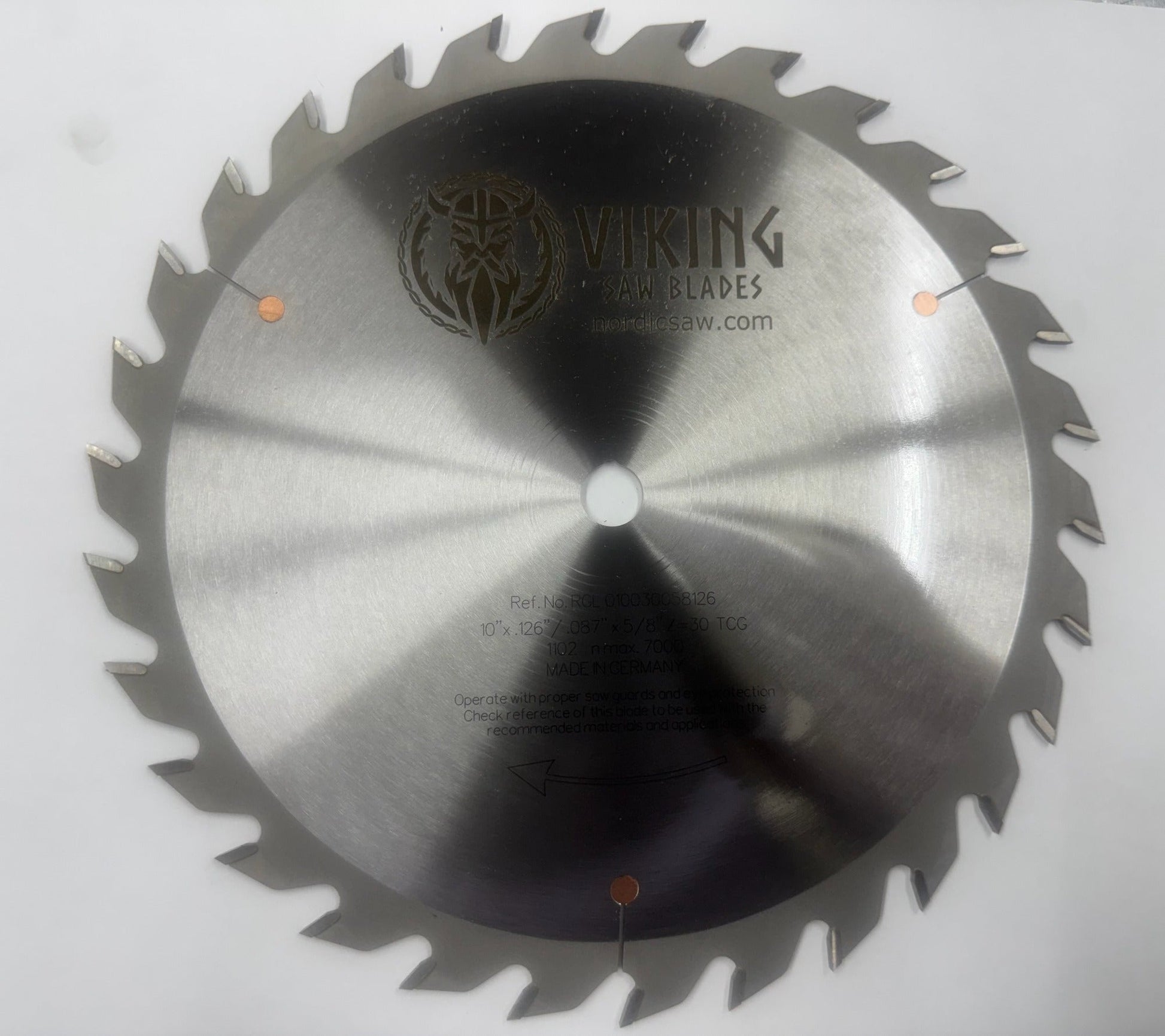

Viking Saw Blades — made for Nordic Saw by Saw Specialties.
